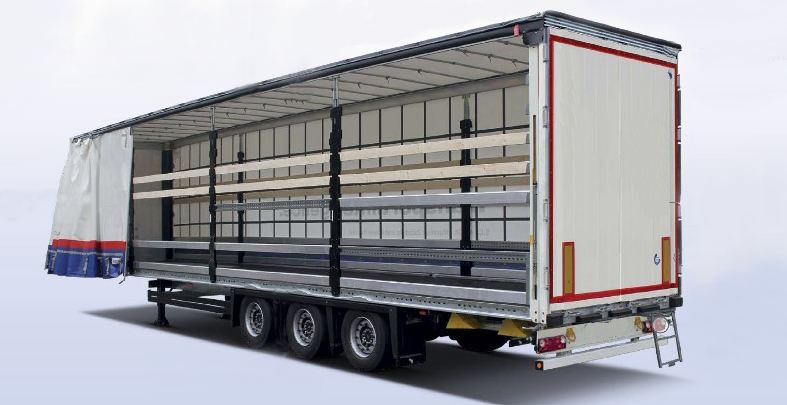

Three-axle semi-trailer "SAKTAGAN"
Short description
In the constructions of trailers and semi-trailers of Saktagan LLP, components of leading European companies are used:
- BPW axles and suspensions;
- pneumatic brake system and anti-lock systems company WABCO (Austria);
- pivots, fifth wheel couplings, support devices of JOST and + GF + firms (Germany);
- additional equipment, devices for cargo linking company SUER (Germany);
- Tires from Michelin, Bridgestone (France), Continental (Germany), Pirelli (Italy), Kama (Russia).
Axles and suspensions (BPW production):
Dependent suspension on longitudinal elastic arms with pneumatic elastic elements and telescopic shock absorbers. The strengthened execution for operation in the conditions of bad roads (and even full off-road).
Brake system (production WABCO, Germany)
Pneumatic outputs and pneumatic brake system for connecting the trailer to the car are made in a two-wire circuit and meet the requirements of UNECE Regulation No. 13. The service brake system is pneumatic with drum-type braking mechanisms. The trailer is equipped with an anti-lock braking system (ABS). To connect the ABS brake system of the trailer with the ABS brake system of the car, it is possible to install a connecting socket made according to the type of ISO 7638.
Support devices (JOST, GF +)
Mechanical, telescopic type, with gear. The force on the handle of the drive of the lifting-lowering mechanism does not exceed 400 N (40 kgf).
Floor
The flooring is made of laminated multilayer birch plywood with a thickness of 27 mm with an external anti-slip surface. The floor has 14 rings-holders of cargo fastening, designed for a load of 2 tons. each
Sides and gates
Side anodized aluminum sides 6 pcs. Rear double wing swing gates. Board height, mm 600
Contact Information
Address: Republic of Kazakhstan, Almaty, md. Atyrau 2, building, 111 (along Ryskulov Avenue)
Phone: +7 (707) 712 7217
Email: manager3@saktagan.com.cn
DIMENSIONS
| External overall length (D), мм | 13680 |
| External overall width (B), мм | 2550 |
| External overall height (H), мм | 4000 |
| Seat Height (P) mm (P), мм | 1100 – 1200 |
Loading space size, mm
| Length (F), mm | 13573 |
| Width (G), mm | 2480 |
| Height (К), mm | 2650 |
| Base wheel distance (S), мм | 7700 |
| Distance between axles, мм | 1310 |
| Distance from saddle pin to tailgate (S), mm | 11948 |
| Wheel track (C), мм | 2040 |
| Platform Height (М) | 1293 |
WEIGHT
| Curb weight of trailer (kg) | 6800 |
| Maximum weight of goods transported, kg | 36000 |
| Maximum permissible load on one axle, kg | 9000 |
| Volume, м3 | 65 |
Wheels and tires
| 13 detachable disc wheels with tubeless tires (including 1 spare wheel) |
| Tires 215/75 R 17,5 |
| 2 wheel chock |
